Overview

Cast Interface is a 3D Slicer extension focused on desktop integration workflows for healthcare providers and researchers.

Background

Cast is an offshoot of FHIRcast (fhircast.hl7.org). FHIRcast is the standard replacing Epic’s file drop interface for integration with PACS and reporting systems. It provides a secure event messaging infrastructure using a hub with websocket subscriptions. Click the diagram below to play each step of a FHIRCast ImagingStudy-open event distributed to all applications over low-latency websocket connections.

Your browser cannot display this interactive SVG. Open the SVG directly.

Click to play each step: worklist selection, HTTPS publish, hub fan-out, synchronized app updates.

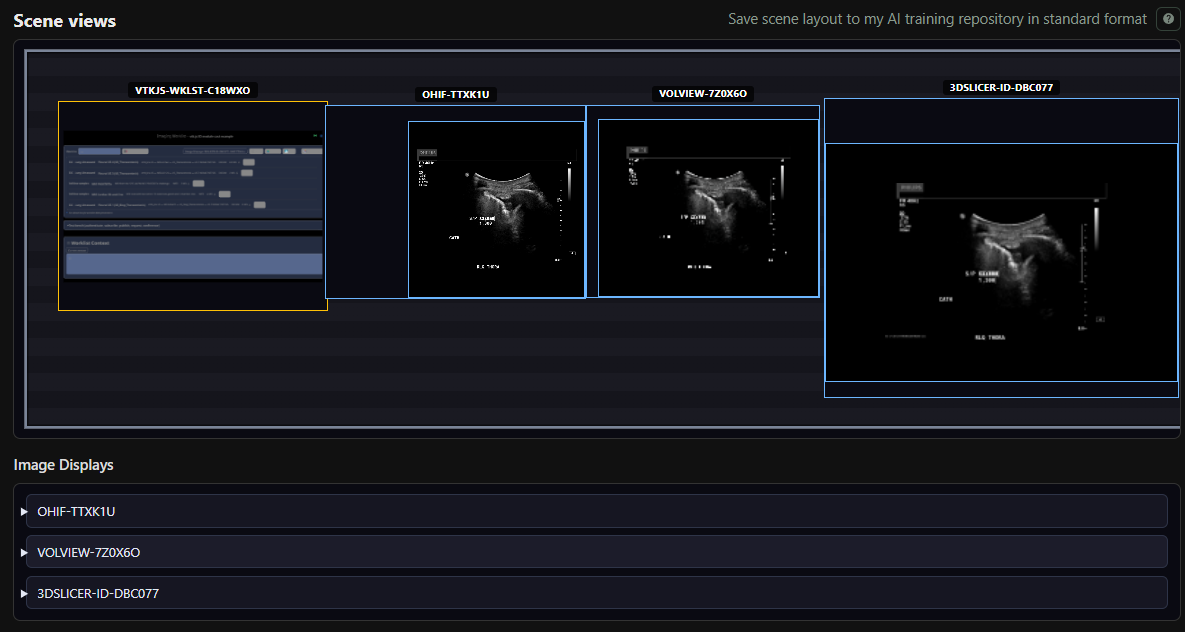

You can test websocket subscription integration with the vtk-js IO module cast interface example. Open several viewer instances, open a study in the worklist and use the “Open scene views” button to view cross-product multi-host display layouts: Open worklist demo

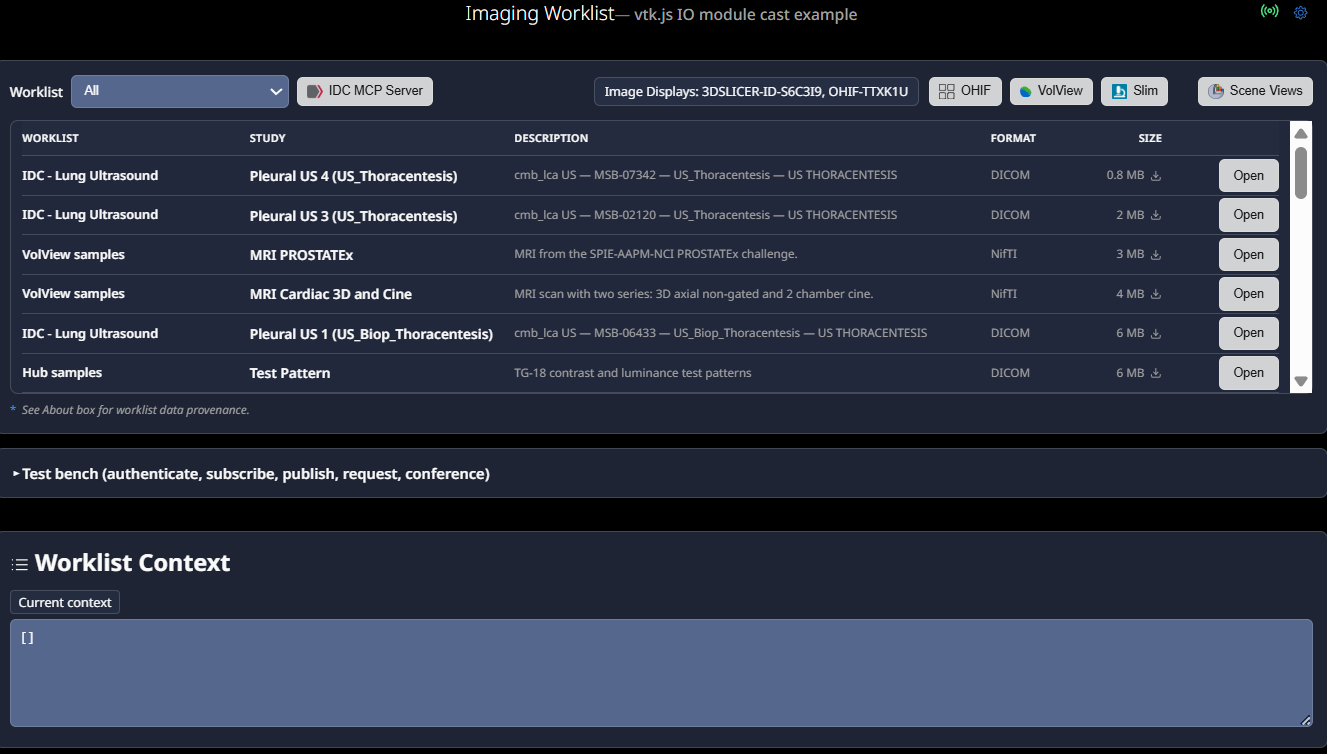

Cast worklist client

The worklist example demonstrates:

Cast has a context/content sharing strategy and hub architecture that differs somewhat from FHIRcast, see description here.

Extension Features

The extension features a hub and two cast interfaces: one for connecting backend agents like Total Segmentator (Resource servers) and another one to connect the Slicer viewer (Image Display client) to the hub.

Hub

The hub is the routing appliance that distributes the messages and handles the data transfer requests over the websocket to each client. It allows clients to connect to each other through a single connection instead of developing multiple interfaces.

Hub UI

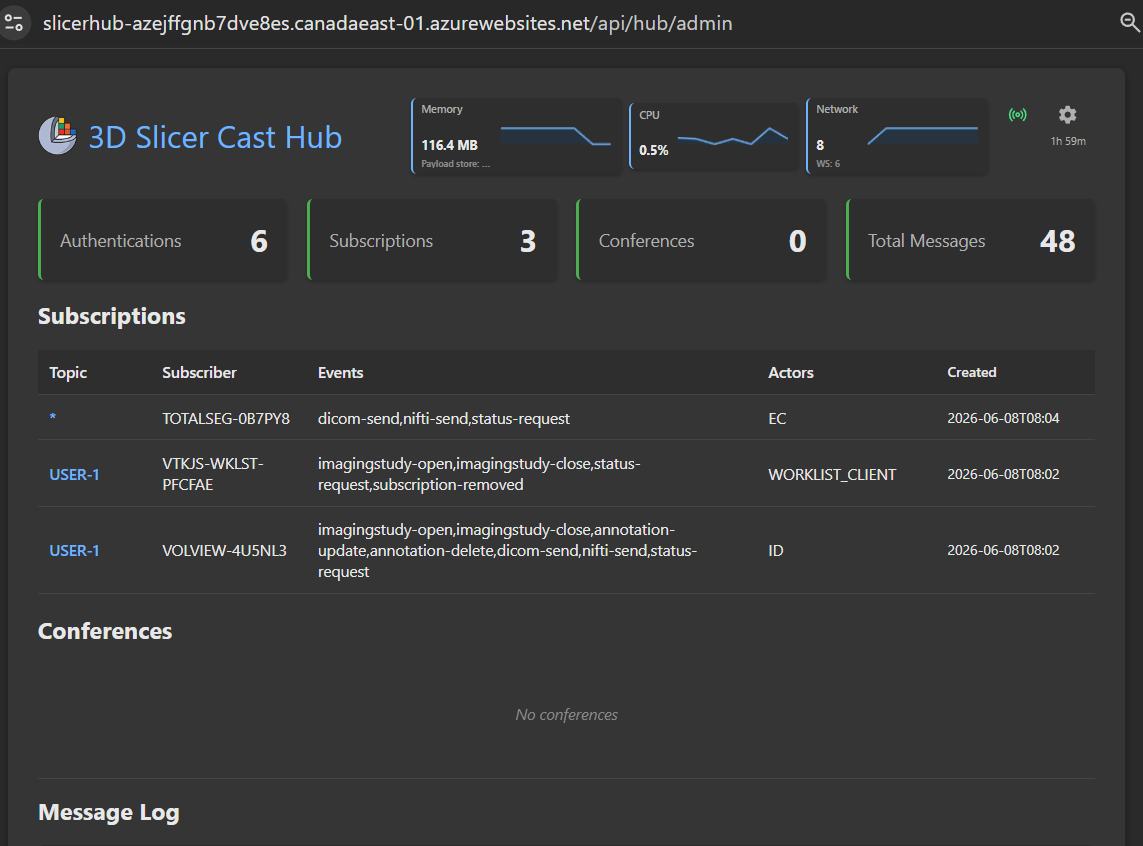

Hub portal

It can be used without the slicer extension by running the “cast_api.py” script.

Resource servers

Resource servers are agents that provide backend services to desktop integration. This allows users to, for example, view AI results without having to send them to the archive first.

The resource server tab provides a visual description of how processing resources can be connected to the hub and made available to cast workflows.

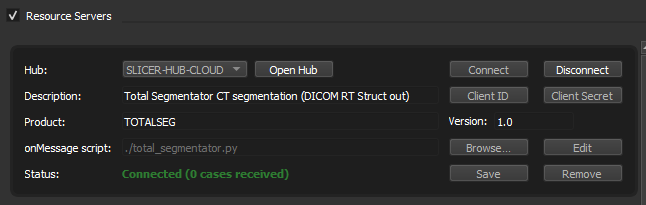

Resource server feature

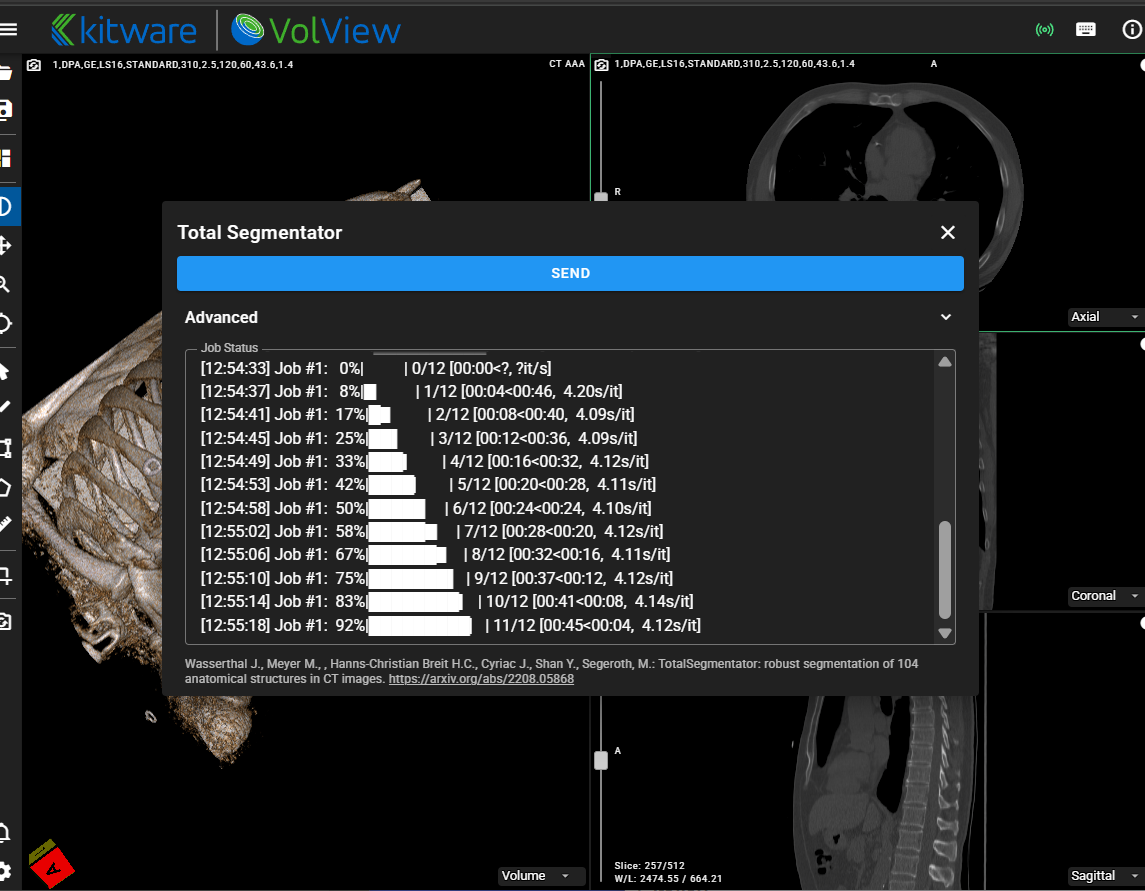

Resource servers subscribe to all user topics for status-request and dicom/nifti events. In the example, Total Segmentator sends binary results back to the user through the hub.

Since these resources do not log in as a user, they need a resource server entry in the customer's authorization server. This provides a client id and client secret. For the cast extension hub, they must be configured in the environment variables of the hub for the resource to connect successfully.

Image Display Client

The image display client provides a PACS client type interface to the 3D Slicer viewer. Supported events include ImagingStudy-open, ImagingStudy-close, dicom-send, and status-request (embedded sceneview).

Image display client

Simplified, secure deployment of medical imaging services

This architecture protects resource servers by eliminating direct inbound internet exposure entirely. No hostname is required and no changes to the networking environment are needed. No VPN or proxy to configure.

Each resource server establishes only outbound encrypted connections to the hub, which functions exclusively as a routing appliance. Because no inbound ports need to be opened on hospital or enterprise networks, the resource servers remain protected behind existing firewalls and are never directly reachable from the public internet.

It also simplifies providing resources in-house since the IT department only needs to add a hostname and rules for the hub. They do not have to touch their networking every time a new resource server is available for use. They only have to configure a shared resource server key for it in their authorization server.

For the hub, the architecture provides a significantly reduced attack surface and minimizes operational security risk since it maintains no storage or database.

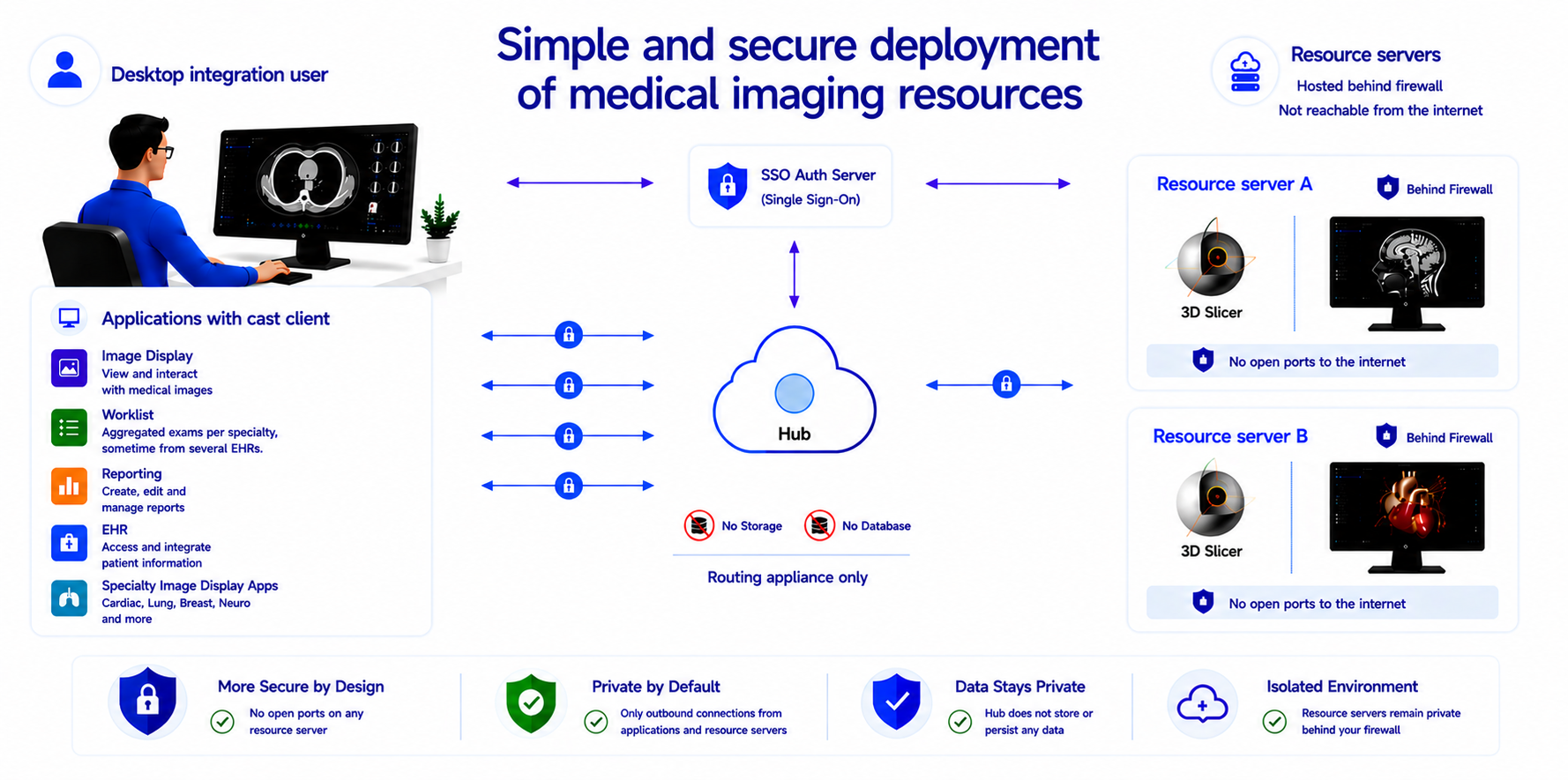

Deployment architecture

After installation, the resource servers outbound ports can also be locked down, allowing access to the hub and sites needed by the resource only.

In theory, the hub can be cloud deployed as a serverless application. In practice, many of those low-cost offerings do not support websocket services and a docker based offering is necessary like Azure WebApps or AWS Elastic Beanstalk.

For high availability deployment a hot standby configuration can be used. The “reset server” button in the hub admin portal allows testing workflow behavior during failover.

The hub provides a test mock auth endpoint that assigns a user when none is provided. For public web applications that do not need user authentication but want to use the resource servers, the mock endpoints provide the required functionality.

Since the resource servers are not on the internet, you will get shared keys for the auth server. The hub can use domain name certificates.

Installation

Install from the 3D Slicer Extension Manager

  1. Open 3D Slicer
  2. Open the Extension Manager
  3. Search for Cast Interface
  4. Click Install
  5. Restart 3D Slicer

License

Cast Interface is distributed under the MIT License.

Acknowledgements

3D Slicer — open-source platform for medical image computing from the 3D Slicer community. This extension is built for and distributed through the 3D Slicer extension ecosystem.

TotalSegmentator was created by the Department of Research and Analysis at University Hospital Basel. If you use it, please cite our Radiology: Artificial Intelligence paper (free preprint). If you use it for MR images, please cite the TotalSegmentator MRI Radiology paper (free preprint).

nnU-Net — TotalSegmentator is heavily based on nnU-Net (preprint).

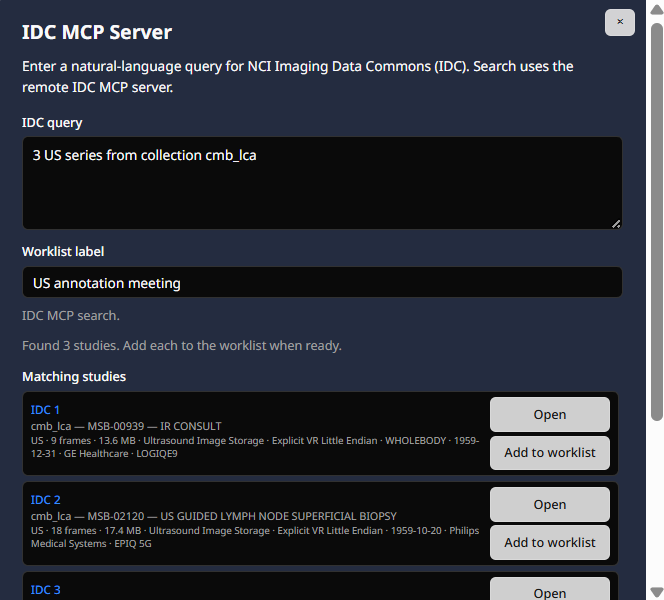

IDC Claude — builds custom worklists from natural-language queries against the Imaging Data Commons (National Cancer Institute) using Anthropic Claude. Query guidance follows the IDC skill.

idc-index — official Imaging Data Commons Python package for local DuckDB SQL against IDC metadata and DICOM series download URLs; used by the IDC Claude resource server. If you use it in research, cite Fedorov A, et al., Radiographics (2023).

VolView — open-source web viewer from Kitware, Inc.

OHIF — open-source zero-footprint viewer from the Open Health Imaging Foundation.

Slim — interoperable slide microscopy viewer from the Imaging Data Commons (National Cancer Institute).
